Key attributes
Industry-specific attributes
Contact Load High Power
Other attributes
Place of Origin Zhejiang, China
Model Number JQX-62F 2Z
Theory Electromagnetic Relay
Use General Purpose
Size Miniature
Protect Feature Sealed

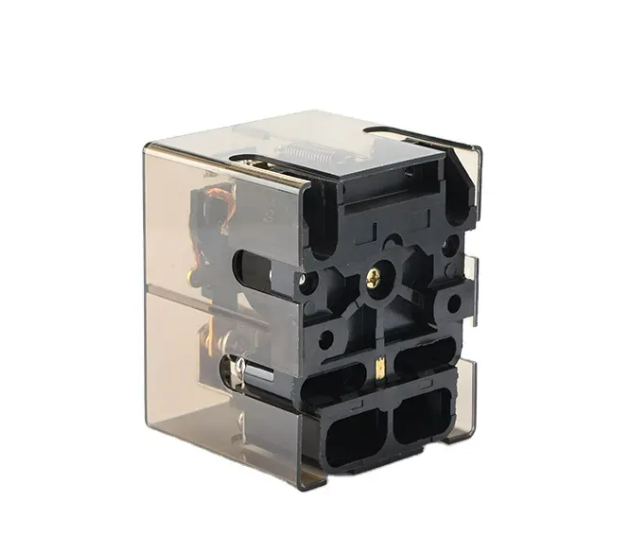

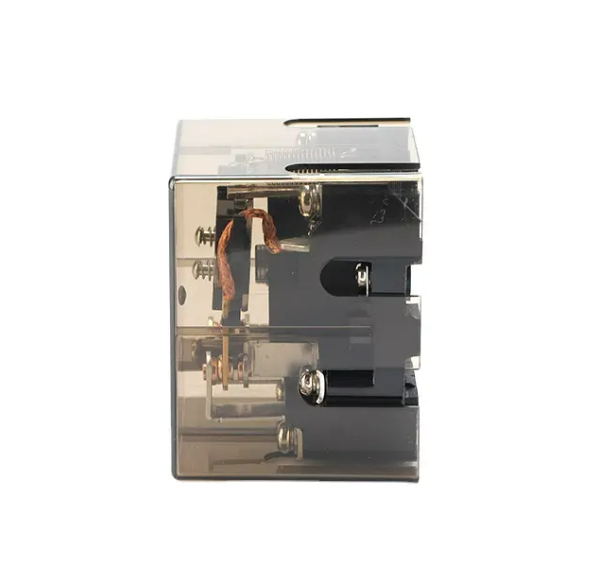

Power Relay JQX-62F 2Z
Coil voltage 5, 6, 9, 12, 24, 48, 60VDC; 12, 24, 110, 220VAC
Contact form 2Z, 2H, 2D
Contact resistance ≤100mΩ(1A 6VDC)
Contact capacity 80A 250VAC/30VDC
Insulation resistance ≥1000MΩ(500VDC)
Dielectric strength BCC ≥2500VAC 1min/BOC ≥1200VAC 1min
Operate / Release time ≤25ms/25ms
Rated coil power DC2.0W AC4VA
