Key attributes
Industry-specific attributes
Contact Load High Power
Other attributes
Place of Origin Zhejiang, China
Model Number NQ62F 1Z
Theory Electromagnetic Relay
Use General Purpose
Size Miniature
Protect Feature Sealed

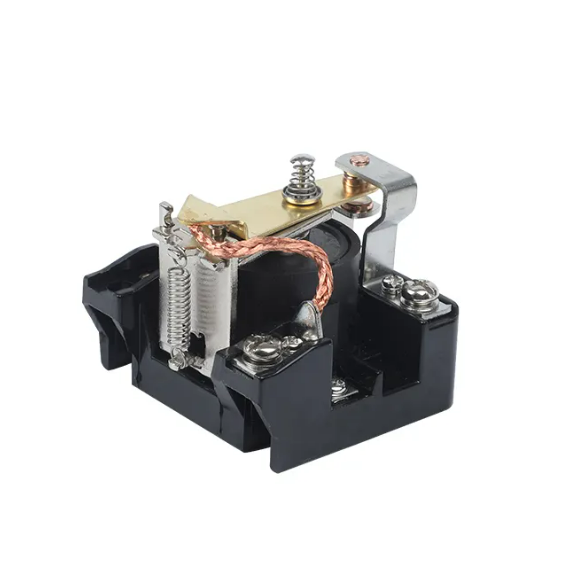

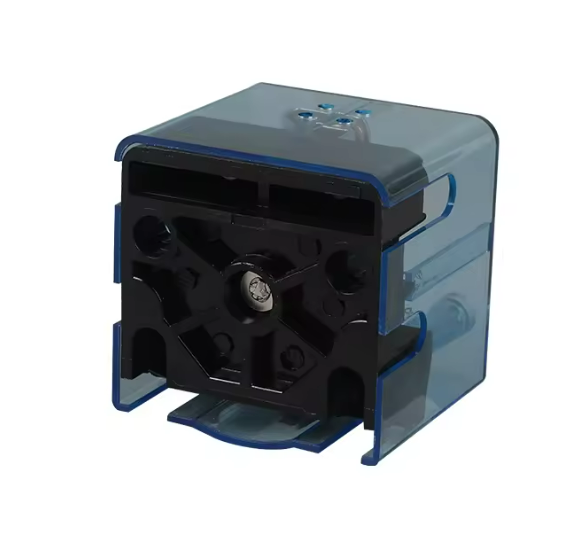

Power Relay NQ62F 1Z
Coil voltage 5, 6, 9, 12, 24, 48, 60VDC; 12, 24, 110, 220VAC
Contact form 2Z, 2H, 2D
Contact resistance ≤100mΩ(1A 6VDC)
Contact capacity 80A 250VAC/30VDC
Insulation resistance ≥1000MΩ(500VDC)
Dielectric strength BCC ≥2500VAC 1min/BOC ≥1200VAC 1min
Operate / Release time ≤25ms/25ms
Rated coil power DC2.0W AC4VA
